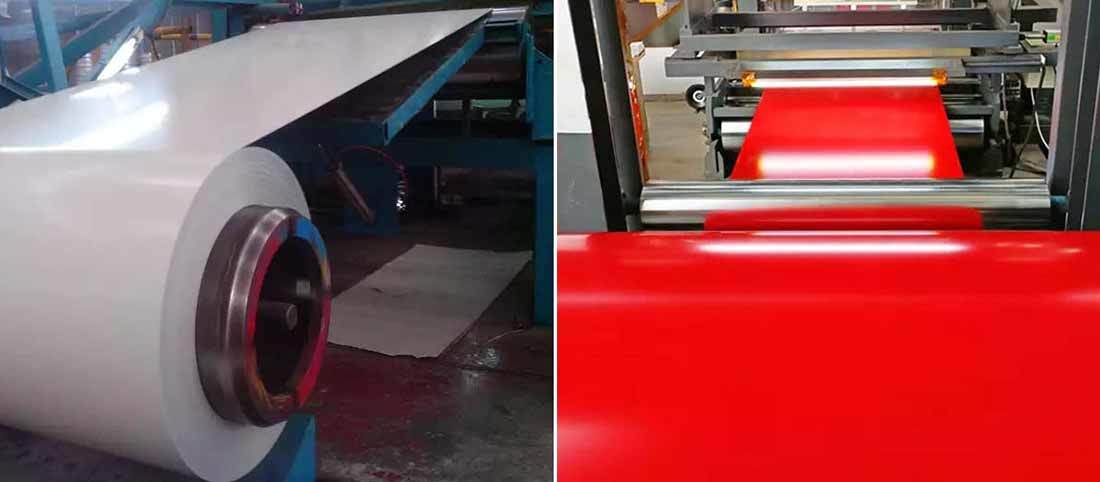

Color Coated Rolls-Yegang Steel (Shandong) Group Co., Ltd.

Product features:
(1) Has good durability, corrosion resistance and galvanized steel compared with longer life;
(2) With good heat resistance, compared with galvanized steel plate, it is not easy to change color at high temperature;
(3) It has good thermal reflectivity;
(4) it has similar processing and spraying properties to galvanized steel plate;

Product name	ppgi color coated steel coil
Material	DX51D,DX52D,DX53D,DX54D,S250GD,S350GD,S550GD
Thickness	0.12-6mm
Standard	ASTM/DIN/JIS/BS/GB/T
Zinc coating	30-275g/M2
Width	600-1500mm, usually 1250mm,1000mm,1240mm,1500mm,914mm,750mm and so on.
Grade	TDX51D+Z,TDX51D+AZ
Application	Inner decoration/School board/Making boxing
Paint Top (microns)	15-35 microns
Paint Back (microns)	5-10 microns
Coil ID	508/610 mm
Coating	AZ30-AZ160, Z50-Z140g/m2
Surface	Matt, high gloss, double coated, wood pattern, marble pattern, winkle

Selection of color

We offer a wide range of colors to choose from, below are the common colors, if you like other colors or patterns, please send us the RAL color code.

Advantages of PPGI color coated rolls

Color-coated galvanized coil sheets are available in a variety of colors and patterns to meet different styles and uses. The colorful coating also makes PPGI steel more corrosion-resistant and durable. PPGI steel coil has excellent processing properties. So you can make the coils into different products depending on your needs. Color-coated galvanized steel coils also retain the strength of the steel, making it tough and safe. PPGI coated membranes are lightweight and easy to transport and install. Compared with PPGL steel, the price is more affordable.

surface treatment
Lamination
This process is to apply a transparent organic film (30-50㎛) on the steel coil at high temperature. It has some unique properties such as fire resistance, fingerprint resistance, excellent durability, stain resistance, etc. Obviously, this treatment method can protect the steel coil well during storage and transportation.
embossed
Embossed PPGI steel coils are designed with different patterns. Popular patterns are stucco, diamond, etc. And it's customizable. Compared with smooth steel coils, it has a vivid 3D effect.

Coating type

In coil steel coatings, resins and pigments play a role in durability. The most commonly used topcoats include polyester, silicon-modified polyester, high-durability polyester and polyvinylidene fluoride.
PolyesterPE
Good adhesion, rich colors, broad range in formability and outdoor durability, moderate chemical resistance, low cost.
Silicone modified polyester SMP
The coating film has good hardness, abrasion resistance and heat resistance; as well as good external durability, chalking resistance, gloss retention, average flexibility and medium cost.
High durability polyester HDP
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, good paint film adhesion, rich colors, and excellent cost performance.
Polyvinylidene fluoride PVDF
Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good formability, stain resistance, limited colors, high cost.

Application scope

Construction industry: such as roofs, interior and exterior wall panels, balcony panels, suspended ceilings, partition walls, windows, door panels, etc.
Transportation: such as car decorative panels, train or ship decks, containers, etc.
Electrical equipment: Mainly used to make casings for freezers, washing machines, air conditioners, etc. PPGI coils for home appliances are of the best quality and have the highest production requirements.
Furniture: such as wardrobes, lockers, radiators, lampshades, tables, beds, bookcases, shelves, etc.
Other industries: such as roller shutters, billboards, traffic signs, elevators, whiteboards, ETC.
