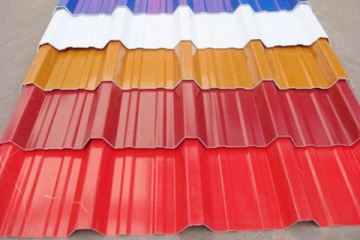

Color Coated Corrugated Board
Color coated coil is hot galvanized plate, hot galvanized aluminum zinc plate, galvanized plate and other substrates, the surface pretreatment (chemical degreasing and chemical conversion treatment), on the surface coated with a layer or several layersof organic coating, and then after baking curing products. Also because coated with a variety of different colors of organic paint color steel coil plate thus named, referred to as color coated coil.
Category：
Keywords：
Color Coated Corrugated Board
Tel：
E-mail：
DETAILS
Color coated coil is hot galvanized plate, hot galvanized aluminum zinc plate, galvanized plate and other substrates, the surface pretreatment (chemical degreasing and chemical conversion treatment), on the surface coated with a layer or several layersof organic coating, and then after baking curing products. Also because coated with a variety of different colors of organic paint color steel coil plate thus named, referred to as color coated coil.
Color coated roll has light weight, beautiful and good corrosion resistance, and can be directly processed, the color is generally divided into gray, blue, brick red, mainly used in advertising, construction, household appliances, electrical appliances, furniture industry and transportation industry.
|
Product name |
Corrugated Steel Roofing Sheet |
|
Material |
DX51D,DX52D,DX53D,DX54D,S250GD,S350GD,S550GD |
|
Thickness |
0.12-6mm |
|
type |
460/760/750/820/840/900/850/880/960/980/1050 |
|
Standard |
ASTM/DIN/JIS/BS/GB/T |
|
Zinc coating |
30-275g/M2 |
|
Width |
600-1500mm, usually 1250mm,1000mm,1240mm,1500mm,914mm,750mm and so on. |
|
Grade |
TDX51D+Z,TDX51D+AZ |
|
Application |
Villas, townhouse, apartments, tourist destination building, and roof conversion project |
|
Paint Back (microns) |
5-10 microns |
|
Surface Treatment |
1. Galvanized2. PVC,Black and color painting3. Transparent oil,anti-rust oil4. According to clients requirement |
|
Coating |
AZ30-AZ160, Z50-Z140g/m2 |
|
Surface |
Matt, high gloss, double coated, wood pattern, marble pattern, winkle |
Product parameters
|
Product Name |
Color Coated Corrugated Board |
|
Thickness |
0.2mm-1.2mm |
|
Width |
600mm-1250mm |
|
Length |
750mm-1100mm |
|
Color |
According to RAL color card (custom patterns available) |
|
Shape |
Wave, trapezoid, tile, curve, etc. |
|
Coating |
PE / SMP / HDP / PVDF |
|
Primer |
Epoxy primer / Polyester primer / Water-soluble acrylic primer / Polyurethane primer |
|
Coating thickness |
Top: 11-35μm / Back: 5-14μm |

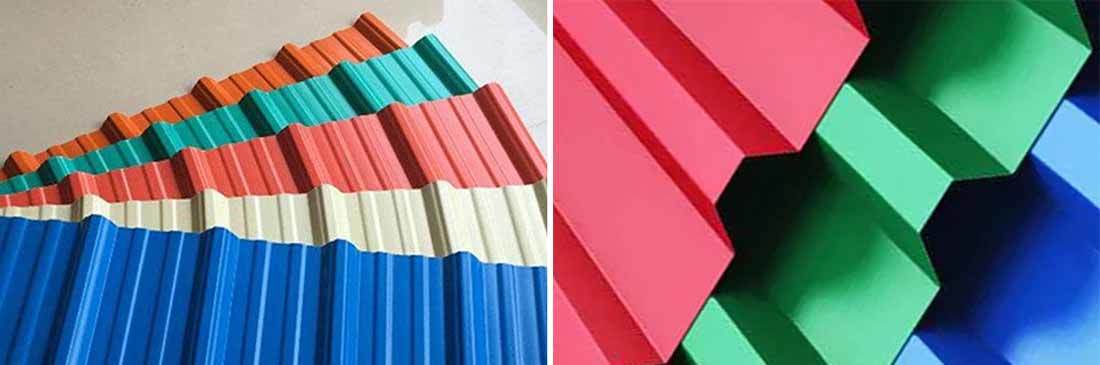

Selection of color
We offer a wide range of colors to choose from, below are the common colors, if you like other colors or patterns, please send us the RAL color code.
Feature introduction
Light weight: The weight is 6-14kg/m2, which is equivalent to 1/30 of a brick wall.
Excellent corrosion resistance: Made of color-coated steel plate, it has excellent corrosion resistance and has a service life of more than 30 years.
High Strength: It is very strong and highly resistant to unnecessary damage or tearing.
Colorful surface: no decoration required. Additionally, it has excellent color retention.
Quick and convenient installation: the construction period is shortened by more than 40%.
Environmentally Friendly: Easily recyclable and less impactful than other building materials.
Shape introduction

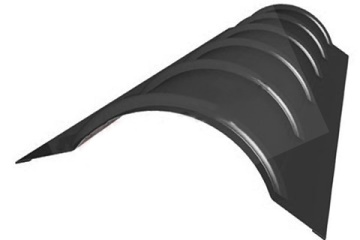

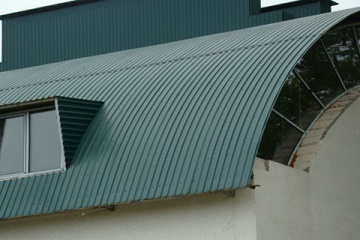

Curved profile roof panels
Curved roofs are made of best grade engineered color coated steel sheets and are available in various sizes, dimensions and designs. These roof panels have multiple uses in building structures with large spatial spans. Manufactured exactly to the client's specifications, these roof panels are widely praised as a perfect architectural creation due to their quick and easy installation. Our curved roof panels are available in various lengths and thicknesses as per the customer's specific requirements.

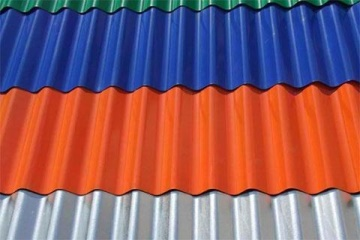

Corrugated roof panels
Corrugated color-coated boards are widely used as roof or wall panels in industrial and civil buildings, warehouses, special buildings, etc. The most commonly used widths of corrugated roof panels are 780mm, 836mm, 852mm and 820mm. We can also customize the size, length, and color of our corrugated roof panels to suit your needs!

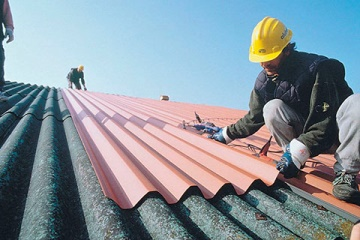

Trapezoidal corrugated roof panels
Trapezoidal profiles are used as large structural corrugated roof panel members due to their high load-bearing capacity. Due to the load-bearing effect of the arches, arched grooves can bridge spaces up to 20 m without the use of supports. The trapezoidal roof has excellent sound dampening properties. The trapezoidal profile has been tested for noise reduction estimates of up to 53 decibels. Although trapezoidal planks are lightweight, they are extremely durable. They have proven unable to be damaged by the degrading effects of wind and atmospheric effects such as acid rain.

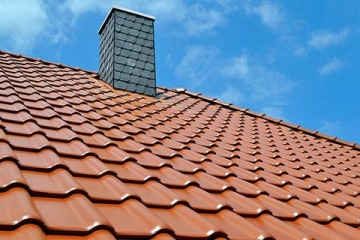

Corrugated tiles
Corrugated roof tiles combine the attractive style of traditional shingles with the lightweight properties of steel. It is an ideal material for many roofing applications such as garden sheds, garages, summerhouses and workshops. In the past, building a roof required dozens of individual tiles. The entire process is time-consuming, labor-intensive, costly, and sometimes even endangers the safety of people passing by the construction site. Now with this highly durable and easy-to-install material, installation is much faster and the entire construction process is safer and more environmentally friendly.
|
Curved corrugated roof panels |
Curved roof |
Corrugated roof panels |
Corrugated roof |
|
|
|
|
|
|
Trapezoidal corrugated roof panels |
Trapezoidal roof |
Corrugated tiles |
Colorful tiles |
|
|
|
|
|
Application scope
Due to its high standard of corrosion resistance and waterproof properties. Colored corrugated boards are widely used in modern construction industry and residential areas. For the construction industry, corrugated steel roofing is widely used in building factories, warehouses, departments, shops, barns, stables, cowsheds, etc. Colored corrugated roofing also performs well on most residential construction projects such as houses, temporary homes, garages, storage units, cabins, sheds, and more. Due to its low installation cost and good corrosion resistance, color-coated corrugated boards appear on more and more public buildings today, including cinemas, exhibition halls, gymnasiums, schools and hospitals.
Product advantages
Business advantage
Factory information
Customer visits and certificates
Customer testimonials
Why Choose us:
1.Quality:
We are professional symbol ofChinese Metal industry; so all the supplied metal products from MAXIare quality researched & guaranteed well ones. Quality is our life. No quality, no biz.
2.Price:
Based on mature and rich acknowledge & experience forstainless steel and alloy steel, MAXIMETAL's supplied price could ensure customer has unique competitiveness in the market.As our aim is long-term biz instead of only profit by 1 or 2 order, we understand only customer win, we could win.
3.Delivery:
MAXIis one of TOP 10manufacturer of stainless steel and alloy products in China, Hold 10000tons raw materials in stock,has its own rolling factory,So enjoy high priority for delivery: Usually within 10-15from deposit date.
4.Payment:
MAXIsupply 30% TT IN ADVANCE + 70% TT WITHIN 7 DAYS OF BL DATE or IRR L/C AT SIGHT for customers. And with cooperation's growing & mature, better & better payment term will be issued, such as: L/C 30 DAYS, L/C 60 DAYS, L/C 360 DAYS, etc.
5.Service:
From MAXI, what customer could get is not only product, but also complete comprehensive marketting concept & service.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please cont
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please cont
